IGNITION PROJECTS IP QUAD SPARK COIL NISSAN RB26DETT

IGNITION PROJECTS IP QUAD SPARK COIL NISSAN RB26DETT

IP POWER QUAD SPARK COILS FOR RB26 DETT

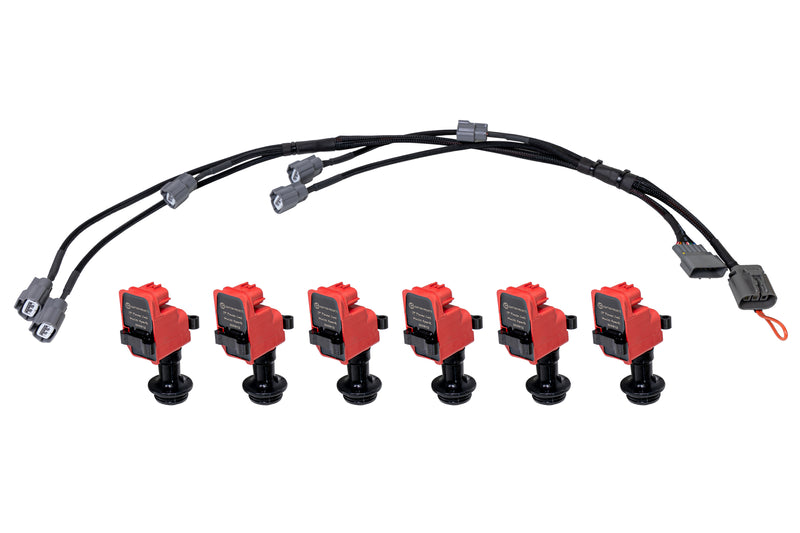

R32: IP-M134609Q

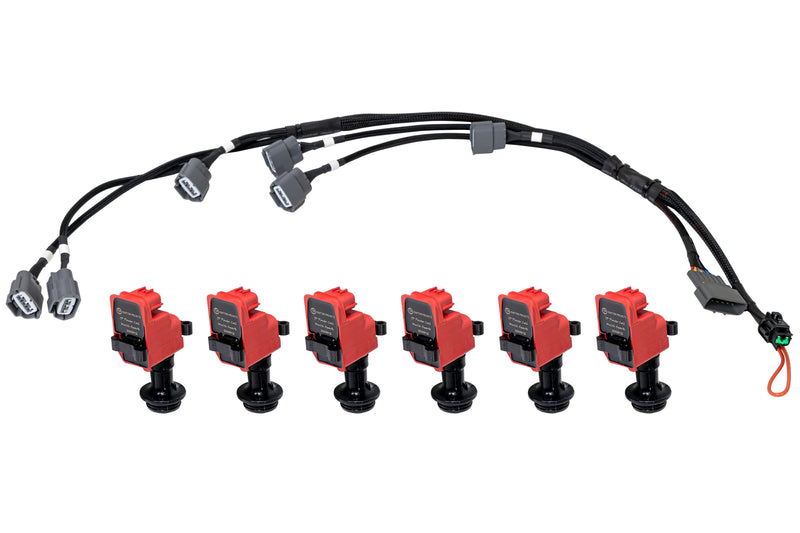

R33: IP-M134610Q

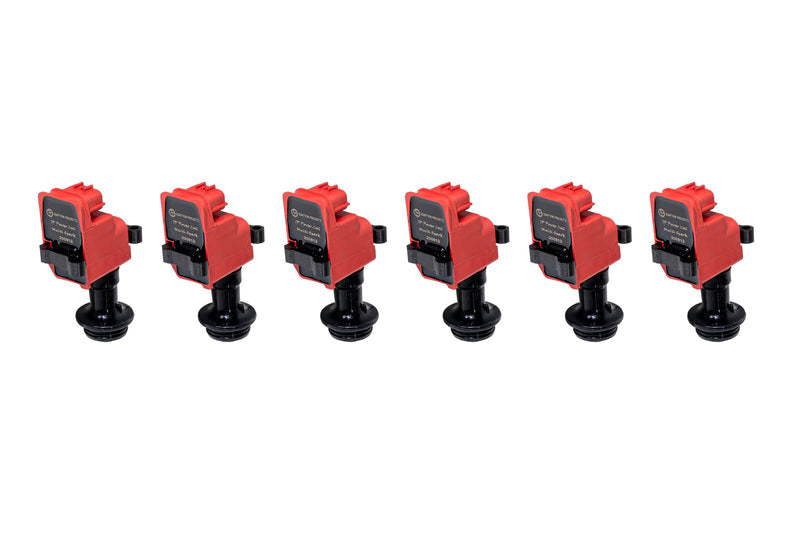

R34: IP-M134603Q

Latest technology! RB26DETT compatible high power ignition coil with new quad-spark function is now available! Up to 3000 rpm, 4 times multi-spark achieves 56% power up compared to genuine one! Double the discharge time! It becomes a single spark at 3000 rpm, but since the number of turns of the coil is increasing, it is a 53% power up even in the single spark range! The R32 and R33 come with a dedicated coupler-in harness, making them powerless. As an option (plus 10,000 yen), you can upgrade to a high-performance harness that uses FEP harness and silicone tube with excellent durability.

Secondary current waveform up to 3000 RPM. It can be seen that the multi-spark (waveform yellow) four times and the discharge time have increased significantly.

Secondary current waveform of 3000 RPM or more. You can see that it has increased significantly compared to the genuine (orange).
